Backup/Restore

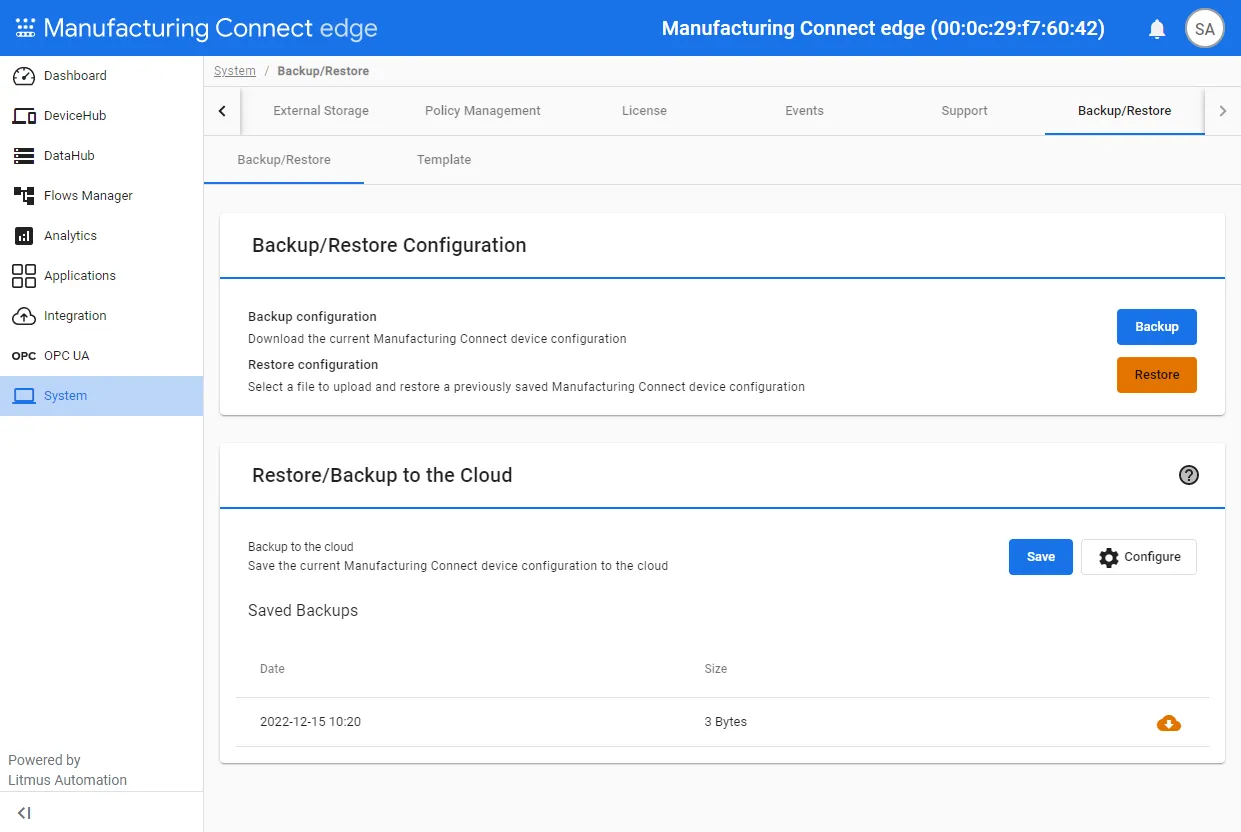

the backup/restore pane allows you to do the following configure and initiate system backups and restore operations to prepare for possible hardware failures, manufacturing connect edge provides a disaster recovery plan to support device replacement create detailed, granular backup templates and exchange these templates between edge devices as json files backup/restore tab important backup/restore operations are not intended for replication of configurations these operations will fail when attempted if you create a backup on an instance of manufacturing connect edge running on a virtual machine, you can't use the same backup to restore an instance of manufacturing connect edge running on a physical device manufacturing connect edge offers a backup option which consists of generating a backup file with a list of configuration settings that can be applied to the same device or a new device you can use backup and restore in the following ways from the manufacturing connect edge ui from manufacturing connect an alternative non manufacturing connect edge backup option is also available, s ee image backup docid\ k9cg7pxublr8cdtv55zws for more details the following use cases are supported set up a newly installed manufacturing connect edge device with a different device’s configuration user deleted or overwrote a portion of the configuration and wants to reset to a last known good configuration device hardware fails and the device must be replaced with another one see replace a damaged device docid\ oph24c8ckw hcodwddvhy device hardware is upgraded see the upload a template section in manage templates docid\ ox7dgwq6flwq7a6eb jnd template tab the template tab allows you to select configurations available for the manufacturing connect edge device and download them to a json file, thereby creating an edge device configuration template, which can be used for replication of manufacturing connect edge configurations to review what configurations are included in a template file, see manage templates docid\ ox7dgwq6flwq7a6eb jnd you can create multiple versions of edge device configuration files you can then upload the template file to another edge device a successful upload applies the configuration to that device you can also apply templates to manufacturing connect edge using manufacturing connect, potentially changing the configurations for hundreds of edge devices for more information about templates, see templates docid\ szwx7grbr36gqnhhhoprd how backup works upon a backup o peration, manufacturing connect edge create a snapshot of a predetermined list of configuration settings (specified in backup file contents and file management docid gxnwa1emuwhsku49n8e6 ) and stores it into a dat file how restore works upon a restore operation, the manufacturing connect edge is temporarily set into a blank state then it retrieves all the configuration settings stored in the dat file and applies all the settings into the manufacturing connect edge instance appropriately the manufacturing connect edge instance is then automatically rebooted choose between backup/restore or download/upload template backup and restore download/upload template purpose restore a hardware damaged manufacturing connect edge device clone a manufacturing connect edge device to other devices customizability cannot be customized and contains a predetermined list of configuration settings can be customized to contain a list of selectable configuration settings files generated/used dat file json file operation replicate and overwrite the manufacturing connect edge device's system state from the backup ( dat) file append (and not overwrite) its configurations settings to the manufacturing connect edge device access backup/restore ui to access the backup/restore pane log in to manufacturing connect edge from the navigation panel, navigate to system > backup/restore the backup/restore pane appears next steps prepare for backup docid\ nanomnxg9eu9yxab9rien back up a device docid 8vhjvwusfhyl3bhidomnl restore a device docid\ ac2u6d0k8huqxyfkpvjk replace a damaged device docid\ oph24c8ckw hcodwddvhy manage templates docid\ ox7dgwq6flwq7a6eb jnd image backup docid\ k9cg7pxublr8cdtv55zws
