Add/View a Remote Network
1 min
You can add and view remote networks.
- To add a new network, click the Add icon from Edge Remote.
- To view/update a network, click the network name from Edge Remote.

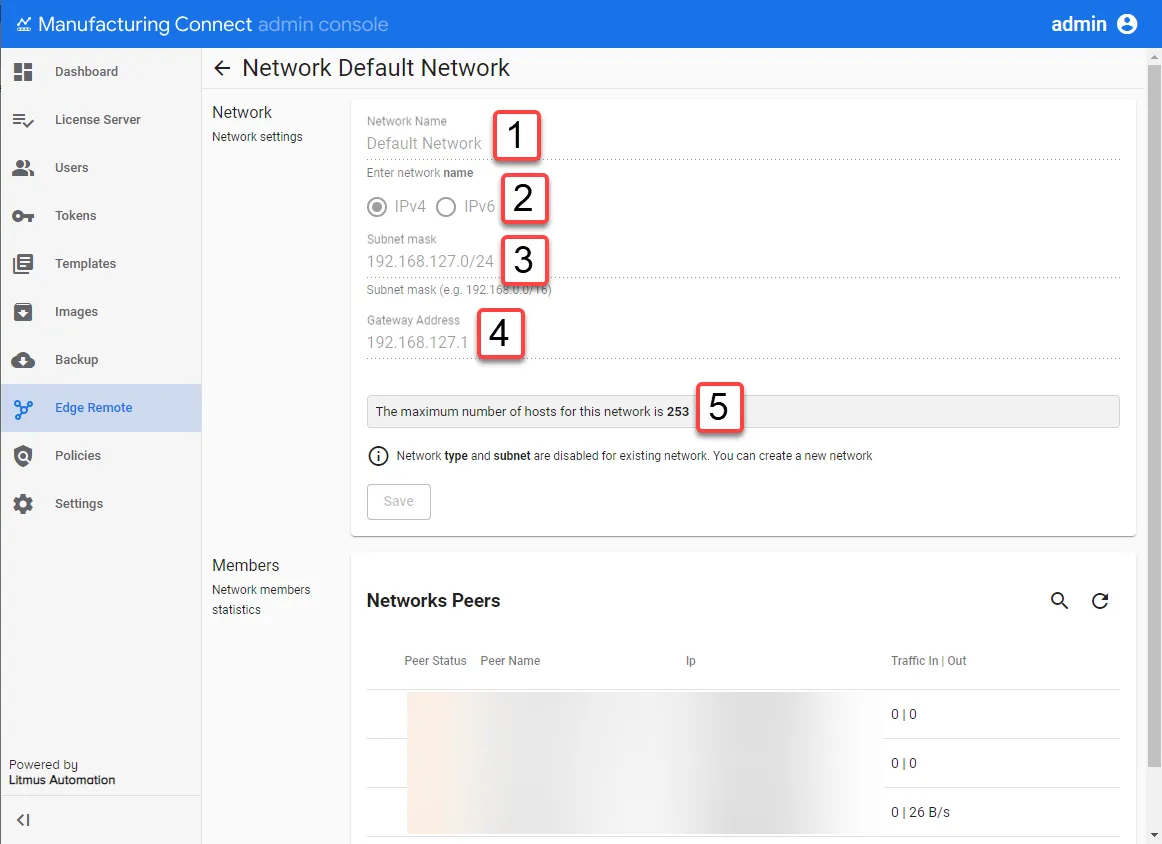

Edge Remote Networks: Network View
Note: Starting with Manufacturing Connect version 2.10.0, an IPv4 address in the format 0.xxx.xxx.xxx/8 is no longer allowed due to RFC standards.
Action |
|---|
[1] Enter the network name. |
[2] Select IPv4 or IPv6. |
[3] Enter the subnet mask.
|
[4] Enter the gateway address. |
[5] Review the capacity for activated devices on the network (available for Manufacturing Connect version 2.15.0 and later). |
